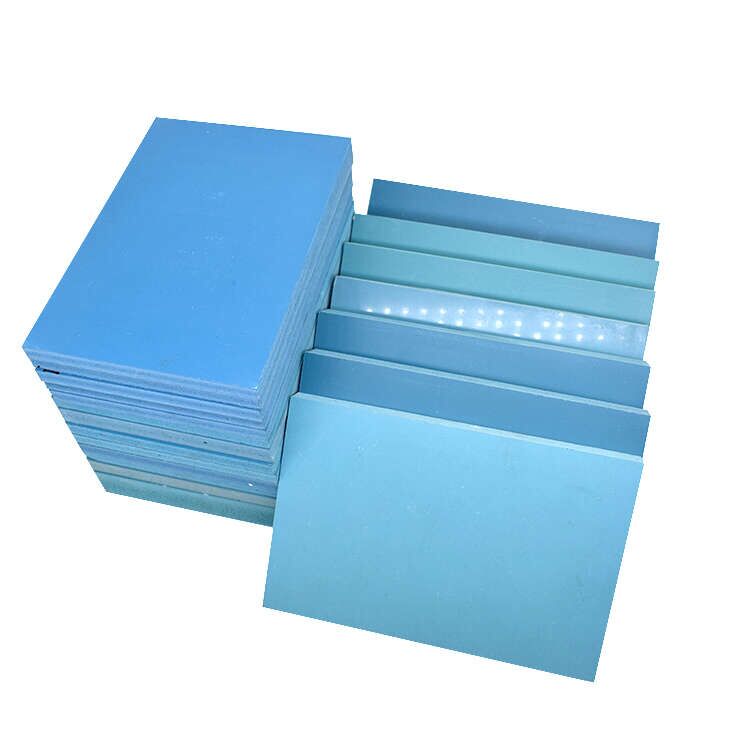

PVC plastic formwork has high impact strength and bending strength, which is much better than the plywood formwork, wood formwork and steel/aluminum formwork. Even in winter, our PVC concrete formwork will not be crisp. Don’t worry about the breaking during construction. PVC materials plastic wall beam column frameworks for building construction.
Specifications:
| Size | Weight | Qty./20GP | Qty./40HQ |
| 1220*2440*12mm | 25-26 KGS | 700 PCS | 1120 PCS |
| 1220*2440*15mm | 31-32 KGS | 560 PCS | 888 PCS |
| 1220*2440*18mm | 37-38 KGS | 466 PCS | 746 PCS |
Test Report of PVC Plastic Formwork:
| No. | Parameters | Standards | Testing Results |
| 1 | Static Bending Intensity | ≥18MPa | 20MPa |
| 2 | Elasticity Modulus | ≥1200MPa | 1444MPa |
| 3 | Alkali Resistance | No bubble, No Cracking | No bubble, No Cracking |
| 4 | Charpy Impact Strength | ≥12.0KJ/m2 | 27.9KJ/M2 |
| 5 | Maximum Load Retention | ≥80% | 97% |
| 6 | Water Absorption Rate | 2.5% | 2.1% |
| 7 | Variation Rate of Heating Sizes | Horizontal: -0.1%
Vertical: -1.05 |
-0.15%
-1.35% |
| 8 | FR Performance | B1 | B1 |
| 9 | Name | PVC Plastic Formwork for Columns Beams and Girders | |
pvc formwork New Desgin&Advantages:
1.High Density—- The surface hardness of our pvc plastic construction formwork is 80-90 shore D,and other is 50-60 shore D.
2.Dimensional Tolerance—-Diagonal tolerance is below 3mm, imensions areaccurate to within ±0.1mm.
3.the nail holding capacity and demoulding effect—-the nail holding capacity and demoulding effect of our formwork are much better，Our plastic concrete formwork does not use release agent when demoulding, and can achieve a mirror effect without secondary processing.
4.light formwork—-our plastic construction formworks are very light formwroks, and it can be easily cleaned just with a little water.
